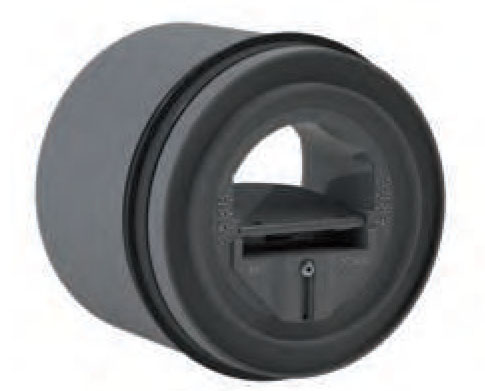

The constant volume regulator is an element placed inside the duct in order to obtain a constant flow within a pressure range from 50 to 250 Pascals.

It is used in air conditioning or ventilation systems either in extraction or blowing mode.

Unit of Measure

Specifications

Regulator Diameter

 N/A 5 Inch

Setting

 N/A RDR Ø 80 + 2 cales

Maximum Temperature

 N/A 60 ºC

Material

 N/A

Plastic (Classified M1)

Intermediary Step

 N/A 5 m³/h

Flow Range

 N/A 10-30 CFM

Set Flow

 N/A 30 CFM

Component and Dimensions

Dimension D1

 N/A 120 mm

Dimension D2

 N/A 117 mm

Dimension L

 N/A 86 mm

Components

 N/A Air Flow Setting Cale (According to the Air Flow) Piece of Regulation Regulator Casing Screw to Fix the Air Flow Sleave with Lip Seal

Important

Important

 N/A
  • Self-adjusting on the pressure range 50 to 250 Pa
  • Easy adjustment
  • The requested air flow is fixed by a screwdriver
  • Made in plastic material (classified Ml) and in galvanized steel for sleeves in 160 to 250 mm
  • Use with a maximum temperature of 60 °C

Presentation

Presentation

 N/A

The self-adjusting flow regulator RDR can be adjusted on sites according to the requested air flow.

The marks on the sides of the opening indicate the settings.

Adjustment

Adjustment

 N/A

Before setting the regulator, it's necessary to calibrate the flow:

  • Unscrew of 1/4 tour with a screwdriver
  • Adjust the mark to the requested flow
  • Screw according to the air flow

Installation

Installation

 N/A

The flow regulators are simply fitted into vertical or horizontal ducts. On the horizontal duct, respect the mention «DOWN» indicated at the front of the product. A leap seal ensures the airtightness.

When the flow regulator is associated with a diffuser, the minimum distance between the diffuser and the regulator is at least one Ø in extraction mode and 3 Ø in blowing mode.

When installing, do not touch the piece of regulation.

Maintenance

Maintenance

 N/A

The flow regulator must remain accessible to permit its maintenance.

Characteristics

Characteristics

 N/A

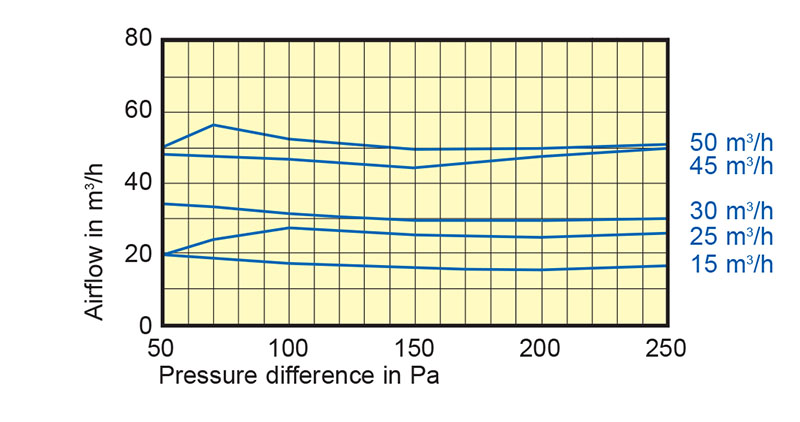

The curves show the flow variations in m³/h of RDR Ø 150, 160 and 200 mm in extraction according to the difference of pressure in Pascal (pressure range of 50 to 250 Pa). The values given are averages which may vary of:

  • + or - 3 m³/h for Air Flow < 50 m³/h
  • + or - 5 % for Air Flow > 50 m³/h

Flow regulators are characterized by their noise level in dB(A).
